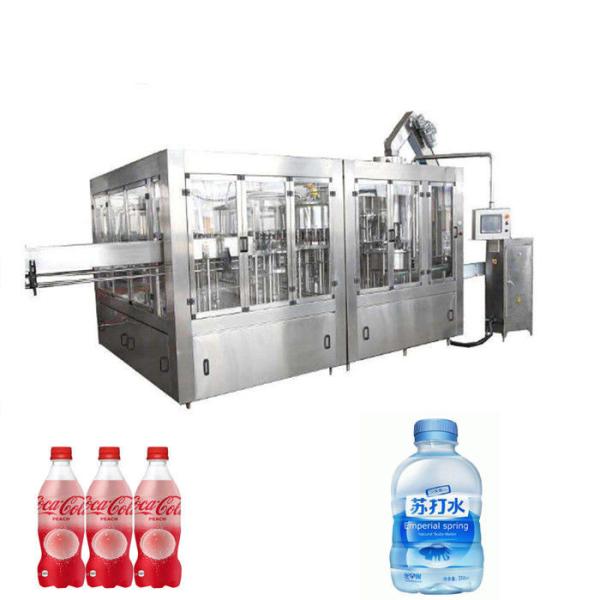

    Automatic Carbonated Beverage Bottling Equipment For Carbonated Water / Soda Water

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T; L/C
    Supply Ability : 10 sets/month
    Delivery Time : 40 working days after down payment
    • Product Details
    • Company Profile

    Automatic Carbonated Beverage Bottling Equipment For Carbonated Water / Soda Water

    Automatic Carbonated Beverage Bottling Equipment For Carbonated Water / Soda Water


    Feature:


    1. The machine could be separated to 3 modules.The height of the bottle-out conveyor is adjustable.Bottles are conveyed to rinser,filler and capper through starwheel and conveyed out finally through bottle-out conveyor.Equip alarm device for bottle block,bottle absence,cap absence and overload.The machine meets the national food hygienic standard,with high automatic and easy to operate.

    2. Products can be handled:Cola,carbonated water,soda water,etc.


    Description:


    The filling machine is a machine with advanced technologies in China, researched and developed on the basis of absorbing the advantages of the imported similar products. It is featured by reasonable and simple design, high operability, high liquid level precision, no filling in case of no bottle, etc. with stable and reliable performance and easy cleaning, Product quality is ensured.


    Specifiocation:

    Model

    14-12-5

    18-18-6

    24-24-8

    32-32-10

    40-40-12

    50-50-15

    60-60-15

    72-72-18

    Production Capacity(500ml b/h)200040006000800010000160002200027000
    Washing Heads1418243240506072
    Filling Heads1218243240506072
    Capping Heads5681012151518
    Suitable bottlesPET Round or Square
    Bottle diameter(mm)50-90
    Bottle height (mm)150-310
    Compressed Air Pressure(Mpa)0.3-0.7
    Washing MediumAseptic Water
    Washing water pressure(Mpa)0.25
    Power(Kw)1.51.52.2345.57.511
    Overall size(cm)200x161 x225

    235x196

    x225

    301x218

    x240

    400x220

    x250

    360x280

    x230

    550x300

    x230

    620x450

    x230

    650x480

    x230

    Weight(kg)2200350042006000850098001280015000
